APPENDIX B


AREA OF REACH

  1. The Ambulant Disabled





:: The area of reach of the ambulant disabled while standing is the same as that of a standing person.


  2. The Chairbound Disabled



  3. Comparative Area of Reach of the Ambulant and the Chairbound Disabled



  4. Vertical Range of Reach of the Chairbound Disabled



  5. Horizontal Range of Reach of the Chairbound Disabled



  6. Area of Maximun Comfort




AREAS OF REACH

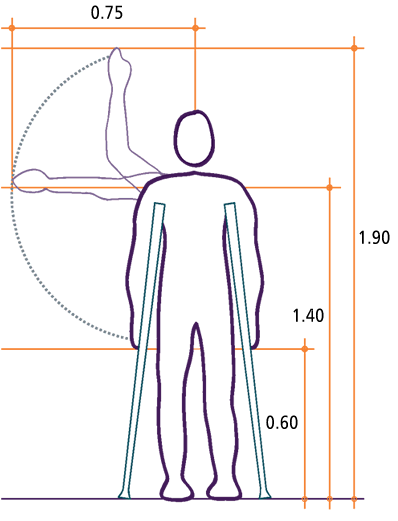

:: The Ambulant Disabled

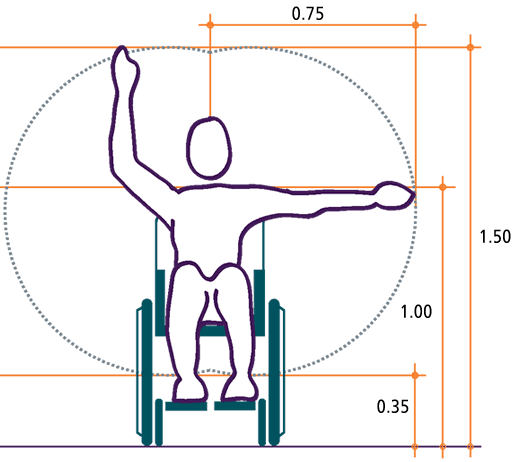

:: The Chairbound Disabled

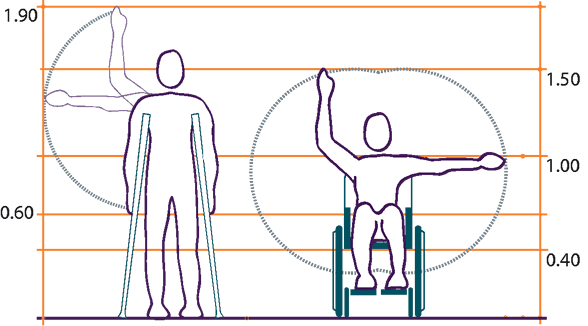

:: Comparative

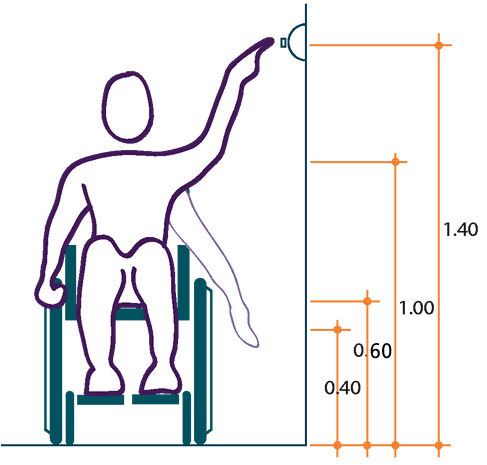

:: Vertical Range

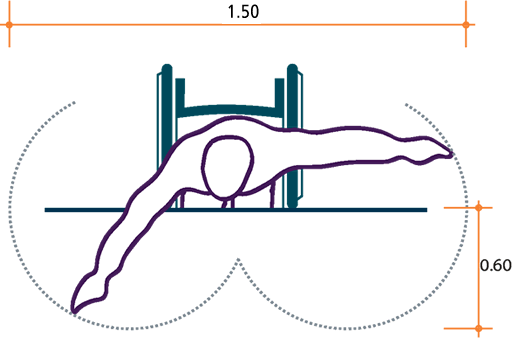

:: Horizontal Range
:: Maximun Comfort
