APPENDIX C
|
|
|
ACCESSIBLE AREAS AND ELEMENTS
FROM A TO Z |
|
|
|
|
|
|
Alarms |
|
|
|
|
|
|
|
:: Alarms should
be audible, have flashing lights and be preferably accompanied by
a text written in raised letters, Braille or Moon.
:: Alarm controls
should be easy to use and should be placed between 1.00m and 1.40m
from the floor.
:: Alarm controls
should be placed in lifts, adapted toilets, stations, etc.
>>
See also: controls
| signs and
signals
Further
information about alarms:
http://www.access-
board.gov/adaag/html/adaag.htm#4.5
http://factsheets.disabledliving.org.uk/?factsheetid=25&chapterid=200
|
|
|
|

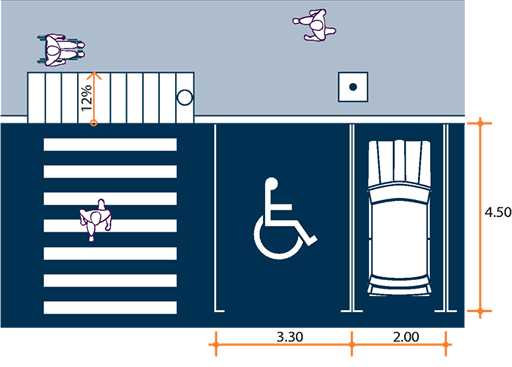

Car Parks |
|
|
|
|
|
|
|
::
Car parks should be easily recognized by
a car driver.
:: The international
symbol of accessibility should always be used to mark car parks.
:: Car parks
should have an appropriate extra width for the transfer to the wheelchair.
:: If cars
are parked one after the other, the minimum dimensions are 2.00m
x 4.50m.
:: If cars
are parked one next to the other, the minimum dimensions are 3.30m
x 4.50m.
:: Car parks
should be located as close as possible to the main entrance of buildings.
:: Access from
the car park to the main entrance of the building should be level,
ramped or there should be an accessible lift.
>>
See also: pavements
| entrance
| ramps
| signs
and signals
Further
information about car parks:
http://www.access2go.co.uk/sources/sourcesddaguide.html
http://www.rovira-beleta.com/imagenes_urbana13.htm
|
|
|
|
Controls |
|
|
|
::
Controls should be automatic or easy to grip or press.
::
It is important for the chairbound to be able to reach controls
without having to ask for help.
:: Light switches,
alarms, call buttons, electrical outlets, etc. should be placed
between 1.00m and 1.40m from the floor.
:: Large letters
and numbers, raised letters and numbers, Braille and Moon are appropriate
for signals and signs but, if possible, they should be accompanied
by recorded messages.
>>
See also: signs and
signals
Further information
about controls:
http://www.access2go.co.uk/sources/sourcesddaguide.html
http://www.access-board.gov/adaag/html/adaag.htm#4.5
http://www.access2go.co.uk/buildings/buildingslifts.html
|
|
|
|
Corridors |
|
|
|
:: Corridors
should be kept free of furniture, obstacles and hazards.

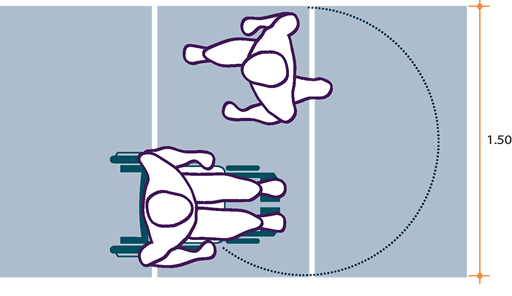

:: A
minimum width of 1.50m is required for a wheelchair to make a 180-degree
turn in a continuous movement.
:: All
protruding objects should be easily detected by the cane of a blind
person, so they should be no higher than 0.60m from the floor.
:: Objects
hanging or mounted overhead should be higher than 2.10m from the
floor.
>>
See also: floor
surfaces
| controls
| street
furniture
Further information
about corridors:
http://www.access-board.gov/adaag/html/adaag.htm#4.5
http://www.access2go.co.uk/buildings/buildingsinside.html
|
|
|
|

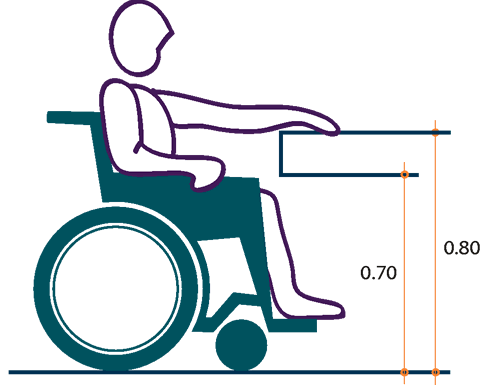

Counters |
|
|
|
::
There should be an adapted counter area in every public building.
:: The height
of the table will be a maximum of 0.80m from the floor.
:: There should
be a free space below the table of at least 0.70m for the wheelchair
to approach.
>>
See also: street
furniture
Further information
about counters:
http://www.access2go.co.uk/buildings/buildingsfurniture.html
|
|
|
|
Doors and Doorways |
|
|
|
::
The minimum width of a doorway should be 0.80m.
::
If there is a double-leaf door, each leaf should have a minimum
width of 0.80m.
::
There should be no turnstiles or revolving doors as the only alternative
to enter a building (the other possibility should be an adapted
entrance).
::
Automatic doors are recommended.
::
Door knobs should be easy to grip. They should never be round!
::
It is recommended to place door knobs at 1.00m from the floor.
::
Doors should have a maximum weight of 3.63 kg.
::

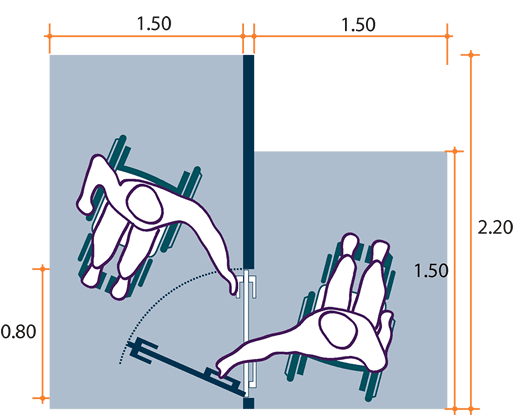

There should be a free area of 1.50m x 2.20m at either side of
a door.
::
Emergency doors should meet the same requirements of accessibility
as entrance doors.
>>
See also: entrance
Further information
about doors
and doorways:
http://www.rovira-beleta.com/imagenes_edificio16.htm
http://www.access2go.co.uk/sources/sourcesddaguide.html
http://www.access2go.co.uk/buildings/buildingsinside.html
|
|
|
|
Entrance |
|
|
|
::
The entrance of buildings should be level or ramped.
:: Revolving
doors and turnstiles should not be allowed, or at least there should
be an adapted entrance next to them.
:: All entrances
that also serve as emergency doors should be accessible for the
chairbound disabled.
:: Doors should
be wide enough to allow easy passage of a wheelchair. The minimum
requirement is 0.80m width.
:: Doors should
be no heavier than 3.63kg.
:: Door handles
should be easy to grip to help people with manipulatory disabilities
(handles should never be round!).
>>
See also: doors
and doorways
Further
information about entrance:
http://www.rovira-beleta.com/imagenes_urbana8.htm
http://www.rovira-beleta.com/imagenes_edificio15.htm
http://www.access2go.co.uk/sources/sourcesddaguide.html
http://www.access2go.co.uk/buildings/buildingsentering.html
|
|
|
|
Fire Extinguishers |
|
|
|
::
Fire extinguishers should be positioned at a comfortable height of
reach for both the ambulant and the chairbound disabled (about 1.00m
from the floor).
>>
See also: street furniture
|
|
|
|
Floor Surfaces |
|
|
|
::
Floors should have flat, hard, level, non-skid surfaces.
:: Floors
should be kept dry and free of snow and ice.
:: Carpets
should be well fitted to the floor; otherwise they should be avoided.
:: The
blind use their sense of hearing to guide them, so carpets are not
desirable because they absorb the sound reflected up from walking
surfaces.
Further
information about floor surfaces:
http://www.rovira-beleta.com/imagenes_urbana4.htm
http://www.access-board.gov/adaag/html/adaag.htm#4.5
http://www.access2go.co.uk/buildings/buildingsoutside.html
|
|
|
|
Grab Rails |
|
|
|
::
Grab rails (or grab bars) are rails usually fixed to the walls or
the ceiling and floor of toilets, lifts, transport, etc. so that a
person can hold from them when sitting, standing or as a prevention
to lose stability.
:: They
should be separated at least 0.04m from the wall or other elements.
:: Grab
rails should be comfortable to hold so the rail should be between
0.04m to 0.06 in diameter.
:: Coloured
grab rails that contrast with the colour of the wall are recommended
for people with a visual impairment.
>>
See also: handrails
Further information
about grab
rails:
http://factsheets.disabledliving.org.uk/?factsheetid=33&chapterid=279
|
|
|
|
Gradients |
|
|
|
:: A
gradient is a slope or the degree of steepness of a slope. It is
used when measuring the degree or percentage of steepness of a ramp
or kerb cut.
:: The
maximum gradient on a ramp or kerb cut should be 12%.
:: The
maximum gradient on a pavement or walk should be no higher than
2%.
:: To
calculate the gradient you should divide the total height into the
total length.
>>
See also: ramps
| kerb
cuts
| pavements
| floor
surfaces
Further information
about gradients:
http://www.rovira-beleta.com/imagenes_urbana6.htm
|
|
|
|

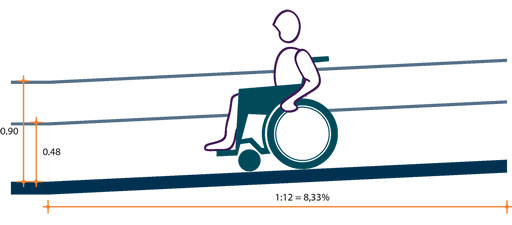

Handrails |
|
|
|
:: A
handrail is a fixed bar that extends along a ramp or stairs for
people to hold for support as they go up or down.
:: Handrails
should extend beyond the slope at the top and at the bottom of ramps
and stairs.
:: Double
handrails should be positioned on both sides of ramps and stairs.
:: The
lowest handrails are necessary for small children to hold or in
case someone has fallen on the stairs/ramp and needs somewhere to
hold for support to stand up again.

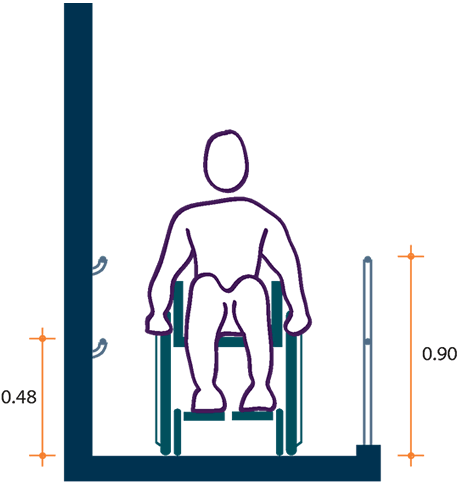

:: The
total height from the floor should be:
:: Highest handrail: 0.90m-0.95m
:: Lowest handrail: 0.48m-0.50m
:: Handrails
should be round or oval and be firmly attached to the wall or floor.
:: Handrails
should be comfortable to hold so the rail should be between 0.04m
to 0.06 in diameter.
:: Handrails
should be separated at least 0.04m from the wall or other elements.
>>
See also: grab
rails |
steps
and stairs
| floor
surfaces
| ramps
Further information
about handrails:
http://www.rovira-beleta.com/imagenes_urbana7.htm
http://www.access2go.co.uk/sources/sourcesddaguide.html
|
|
|
|
Kerb Cuts |
|
|
|
:: A
kerb cuts is a ramp that connects the pavement with the pedestrian
crossing.
:: Kerb
cuts should be placed where they are needed (e.g. at pedestrian
crossings).
:: The
width of a kerb cut should be a minimum of 0.90m.
:: The
gradient of a kerb cut should be no greater than 12%.
:: The
edges of the kerb cuts should be sloped or rounded at 45º so
that pedestrians do not trip over an edge and fall.
:: All
kerb cuts should have a different texture of that of the pavement.
>>
See also: pavements
| floor
surfaces
Further information
about kerb
cuts:
http://www.rovira-beleta.com/imagenes_urbana5.htm
http://www.access2go.co.uk/buildings/buildingsoutside.html
|
|
|
|
Lifts |
|
|
|
::
Lifts should have access to the main hall and entrance, main corridor
and other public areas.

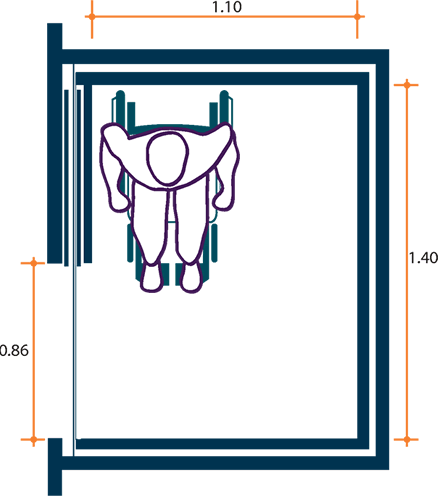

:: The
minimum interior dimensions of a lift cab should allow a wheelchair
to enter and exit easily (1.10m x 1.40m).

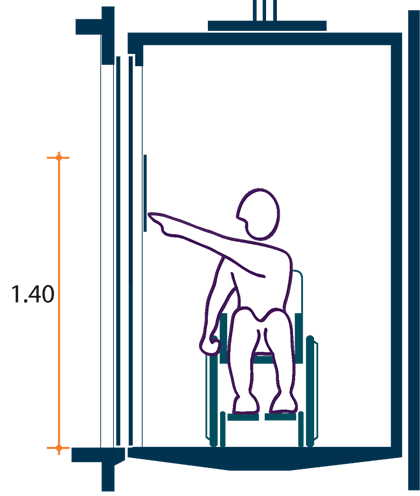

:: Lift
controls and safety devices should be within the reach of an ambulant
as well as a chairbound disabled (between 1.00m and 1.40m high).
These may be either in the front or the side walls of the lift.
:: Braille
or Moon symbols and single raised letters and numbers should be
located next to standard buttons in the lift cab and at each floor
on the lift doorframe.
:: Acoustic
recorded messages are also desirable.
:: The
gap between the floor and the lift should be no wider than 0.01m.
>>
See also: controls
| signs
and signals
| doors
and doorways
| floor
surfaces
Further information
about lifts:
http://www.access2go.co.uk/buildings/buildingslifts.html
|
|
|
|
Pavements |
|
|
|
::
Pavements should have a minimum free width of 0.90m.
:: Public
pavements should be kept open and free of street furniture to allow
the passage of a wheelchair.
:: All
protruding objects should be no higher than 0.68m from the floor
to be easily detected by the cane of a blind person.
:: Objects
hanging or mounted overhead should be higher than 2.10m from the
floor.
:: Objects
that protrude more than 0.10m from the wall should be removed.
:: Surfaces
should be stable, firm and slip-resistant.
:: There
should always be a kerb cut to communicate the pavement with the
pedestrian crossing.
:: The
texture of the pavement changes to indicate that there is a kerb
cut.
:: There
should be no isolated steps.
:: The
maximum gradient accepted on a pavement is 2%.
:: There
should be a free "circle" of 1.50m of diameter at every
corner or any time there is a change of direction.
>>
See also: floor
surfaces
| kerb
cuts
| gradients
Further information
about pavements:
http://www.rovira-beleta.com/imagenes_urbana1.htm
http://www.access2go.co.uk/buildings/buildingsoutside.html
|
|
|
|

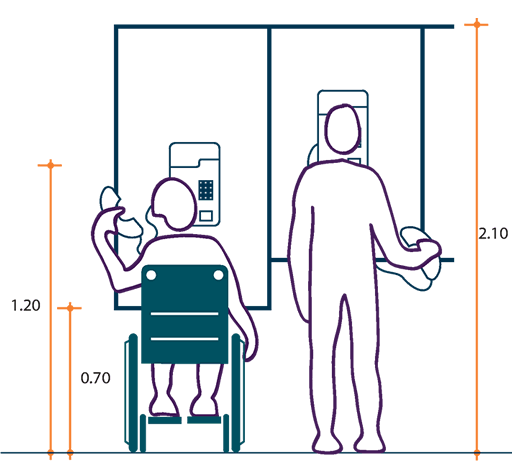

Public Telephones |
|
|
|
:: There
should be at least one adapted public telephone in an accessible
area of any public building.
:: At
least one public telephone in a building should be placed within
the area of reach of a chairbound disabled (between 1.00m to 1.40m).
:: There
should be a free space below the telephone of 0.70m for a wheelchair
to approach.
:: Telephone
boxes should be 0.80m wide and at least 1.20m deep free of obstacles.
The floor should be level and without any step at the threshold.
:: At
least one receiver should have an amplifier for the hard of hearing.
>>
See also: street
furniture
| floor
surfaces |
counters
Further
information about public
telephones:
http://factsheets.disabledliving.org.uk/?factsheetid=30&chapterid=249
http://factsheets.disabledliving.org.uk/?factsheetid=30&chapterid=250
|
|
|
|
Ramps |
|
|
|
::
Ramps are absolutely necessary for the chairbound.
:: They
are also very useful for the ambulant disabled and for the blind.
:: It
is important that they have the minimum gradient of slope, with
a maximum of 1:12 (8.33 percent).
:: Level
rest platforms are necessary at 20m intervals for ascent and descent
on a long ramp.
:: Double
handrails should be positioned on both sides of the ramp (at 0.90m-0.95m
the highest and at 0.48m-0.50m the lowest) and should extend beyond
the slope at the top and at the bottom of the ramp.
:: Hard,
level, non-skid surfaces are essential, and they should be kept
dry and free of obstacles and hazards.
>>
See also: floor
surfaces
| handrails
| entrance
| gradients
Further information
about ramps:
http://www.rovira-beleta.com/imagenes_edificio18.htm
http://www.access2go.co.uk/sources/sourcesddaguide.html
http://www.access-board.gov/adaag/html/adaag.htm#4.5
http://factsheets.disabledliving.org.uk/?factsheetid=11&chapterid=77
|
|
|
|
Signs and Signals |
|
|
|
::
Signs should be clear and easily noticeable.
:: Flashing
lights should be used where possible, accompanied by written messages
in Braille, Moon or raised letters and numbers.
:: Warnings
and directions should have clear visual signals, such as flashing
lights and audible messages.
:: Transport
vehicles and transport stations should have audible as well as written
messages to inform about departures and arrivals.
:: Signs
should be placed within the visual scope of the ambulant as well
as the chairbound disabled.
:: Induction
loops should be provided for the deaf and hard of hearing and be
conveniently marked with the corresponding symbol.
>>
See also: Appendix
A
Further information
about signs
and signals:
http://www.access2go.co.uk/sources/sourcesddaguide.html
http://www.access2go.co.uk/buildings/buildingsfurniture.html
|
|
|
|
Steps and Stairs |
|
|
|
::
Many of the ambulant disabled find stairs easier to negotiate than
ramps.
:: Hard,
level, non-skid surfaces of steps are essential and should be kept
dry and free of obstacles and hazards.
:: Double
handrails should be positioned on both sides of steps and stairs
and should extend beyond the first and last steps.
:: There
should be no open steps.
:: There
should be no isolated steps.
:: Steps
should not have protruding nosings.
:: The
maximum height of every step should be 0.16m and the minimum length
should be 0.30m.
:: The
total width of the staircase should be no less than 1.00m.
:: There
should be a level rest platform after every 12 steps.
>>
See also: handrails
| floor
surfaces
Further information
about steps
and stairs:
http://www.rovira-beleta.com/imagenes_edificio19.htm
http://www.access-board.gov/adaag/html/adaag.htm#4.5
|
|
|
|
Storage Spaces |
|
|
|
::
Storage space for a chairbound disabled should be between 0.30m and
1.40m of height from the floor (1.00m is the area of maximum comfort
of storage).
:: Storage
space for an ambulant disabled should be between 0.60m and 1.40m
from the floor.
Further
information about storage
spaces:
http://www.rovira-beleta.com/imagenes_edificio17.htm
|
|
|
|
Street Furniture |
|
|
|
::
All street furniture should be placed to allow a free passage at least
0.90m wide and 2.10m high.
:: All
furniture that protrudes more than 0.15m should have a fixed element
around it about 0.15m high to be easily detected by the cane of
a blind person.
:: All
furniture that has to be manipulated should be placed at a height
of 1.00m - 1.40m.
:: Seats
on public benches should be 0.50m high.
>>
See also: fire
extinguishers
| street
lights
| telephones
| counters
Further information
about street
furniture:
http://www.rovira-beleta.com/imagenes_urbana8.htm
http://www.access2go.co.uk/buildings/buildingsfurniture.html
|
|
|
|
Street Lights |
|
|
|
::
Street lights should have audible signals for the blind.
:: In
case it is necessary to press a button to activate the green light
to cross, this button should be placed between 1.00m and 1.40m from
the floor.
>>
See also: controls
| street
furniture
Further information
about street
lights:
http://www.dbup.com.ar/numeric-traffic-light.htm
|
|
|
|
Transport |
|
|
|
::
Public transport adapted for the disabled should have the accessibility
symbol on a visible place.
:: Buses
should have level ramps or steps with entrance for wheelchair users.
:: Strategically-located
grab rails should be placed at a height of 0.90m - 0.95m.
:: Special
seats higher than ordinary ones (0.50m high) and fold-up seats that
can be turned into spaces for wheelchairs should be provided in
public transport.
:: Acoustic
recorded messages are required for the blind.
>>
See also: signs and
signals
| grab
rails
Further information
about transport:
http://factsheets.disabledliving.org.uk/?factsheetid=47&chapterid=435
|
|
|
|
Toilets |
|
|
|
::
The door of the toilet should open outwards.
:: The
doorway should have a minimum width of 0.80m.
:: There
should be a free circle of 1.50m diameter to allow the wheelchair
to turn round inside the toilet.
:: The
WC seat should have adjustable height or a seat extender.
:: There
should be two adjustable grab bars at both sides of the WC (at a
height of 0.70m-0.75m from the floor) to help the person transfer
from the wheelchair to the WC seat.
:: The
bottom of the mirror should be no higher than 0.90m.
:: All
the elements and mechanisms should be placed between 0.40m and 1.40m
high.
:: The
lower part of the basin should be free of obstacles to allow the
wheelchair to approach it.
>>
See also: controls
| doors
and doorways
|
floor surfaces.
Further
information about toilets:
http://www.access2go.co.uk/sources/sourcesddaguide.html
http://www.access2go.co.uk/buildings/buildingstoilets.html
http://www.rovira-beleta.com/imagenes_edificio20.htm
http://factsheets.disabledliving.org.uk/?factsheetid=19&chapterid=135
|
|
|
|
Windows |
|
|
|
::
Controls to open and close windows should be automatic or easy to
press or grip.
:: Handles
or controls should be placed between 1.00m and 1.40m from the floor.
>>
See also: controls
|
|
|
|
|
|
